60 Series Cable Chain

Short Description:

Widely applied to numerically controlled machine tools, electronic devices, dimension stone mechanism, glass mechanism, door-window mechanism, plastic jetting-moulding machine, manipulator, weight handling equipment, auto warehouse, etc.


Product Detail

Product Tags

60 Series Cable Chains--- Non-Closed & Closed

1
2

Introduction of guide chains:

Material:Enhanced polyamide with high tension and pull-out strength, excellent flexibility, steady-going capacity in high or low temperature. lt can be used outdoors.

Resistant against: oil, salt, light acid, soft lye.

Max velocity and max accelertion respectively: 5m/s and 5m/s (specific information may be decided by operation conditions); Operation life:

Under the condition of normal overhead use, it can reach 5 million times for reciprocating motion (detailed life in accordance with operation conditions).

Tensile Strength 180N/mm Volume Resistance 1010~1015Ω
Impact Strength 50KJ/m Water Absorption(23℃) 4%
Temperature Range -40℃~130 Friction Coefficient 0.3
Surface Resistance 1010~1012Ω Flame-retardant HB (UL94)
3
4
5

Mounting Bracket

L=S/2+πR+K

Length of chains

: L=S/2+πR+K(spare space)

K=P+(2~3)T

Specification

Inner Height (mm) 60
Max outer diameter of cables (mm) 56
T Pitch (mm) 91 (11segments/m)
Max Horizontal hanging Length 3.9
Max Travel Distance (mm) 280
Max Vertical Hanging (mm) 70
Optional Bending Radius 100/125/150/200/250/300/350/400

6

Separators can be selected60.01VS can be installed both in non-closed & closed chains.

The detailed value of R must be chosen from the dimensions

Type Inner width Bi(mm) outer width Ba(mm) Type of according fixed connector  A(mm)  Bmm)  C(mm)  D(mm)
60.75.R

75

111 60.75.12PZ

95

35

45

9

60.100.R

100

136 60.100.12PZ

120

35

45

9

60.125.R

125

161 60.125.12PZ

145

35

45

9

60.150.R

150

186 60.150.12PZ

170

35

45

9

60.175.R

175

211 60.175.12PZ

195

35

45

9

60.200.R

200

236 60.200.12PZ

220

35

45

9

60.250.R

250

286 60.250.12PZ

270

35

45

9

60.300.R

300

336 60.300.12PZ

320

35

45

9

60C.75.R

75

111 60C.75.12PZ

95

35

45

9

60C.100.R

100

136 60C.100.12PZ

120

35

45

9

60C.125.R

125

161 60C.125.12PZ

145

35

45

9

60C.150.R

150

186 60C.150.12PZ

170

35

45

9

60C.175.R

175

211 60C.175.12PZ

195

35

45

9

60C.200.R

200

236 60C.200.12PZ

220

35

45

9

60C.250.R

250

286 60C.250.12PZ

270

35

45

9

60C.300.R

300

336 60C.300.12PZ

320

35

45

9


Note: Type No. “xxC” for closed type, whole “xx” for non-closed type

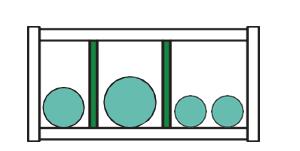

Accessories—Interior Separation for Non-closed Chains

2

Advantages of Cable Chains:

Guiding the cables for moving

Protecting the cables when moving up and down

Applied in the condition of light load, medium or short distance, slow speed, etc.

Application of guide chains

Applied to use in reciprocating motion so as to have traction and protection effects on built-in cables, inner oil tubes, gas tubes. water tubes, etc;

Each segmental part of the engineering plastic cable chain can be opened for easy installation and maintaining; While working, the engineering plastic chain is in low noise, anti-abrasion, high speed movement;

Widely applied to numerically controlled machine tools, electronic devices, dimension stone mechanism, glass mechanism, door-window mechanism, plastic jetting-moulding machine, manipulator, weight handling equipment, auto warehouse, etc.
