26 Series Cable Chain

Short Description:

Widely applied to numerically controlled machine tools, electronic devices, dimension stone mechanism, glass mechanism, door-window mechanism, plastic jetting-moulding machine, manipulator, weight handling equipment, auto warehouse, etc.


Product Detail

Product Tags

26 Series Cable Chains--- Non-Closed & Closed

1
2

Introduction of guide chains:

Material: Enhanced polyamide with high tension and pull-out strength, excellent flexibility, steady-going capacity in high or low temperature. lt can be used outdoors.

Resistant against: oil, salt, light acid, soft lye.

Max velocity and max acceleration respectively: 5m/s and 5m/s (specific information may be decided by operation conditions); Operation life:

Under the condition of normal overhead use, it can reach 5 million times for reciprocating motion (detailed life in accordance with operation conditions).

Tensile Strength 180N/mm Volume Resistance 1010~1015Ω
Impact Strength 50KJ/m Water Absorption(23℃) 4%
Temperature Range -40℃~130 Friction Coefficient 0.3
Surface Resistance 1010~1012Ω Flame-retardant HB (UL94)

18 Series Cable Chains

3
4
5

L=S/2+πR+K

Length of chains

: L=S/2+πR+K(spare space)

K=P+(2~3)T

Mounting Bracket

Inner Height (mm) 26
Max outer diameter of cables (mm) 23
T Pitch (mm) 46 (22segments/m)
Max Horizontal hanging Length 2.1
Max Travel Distance (mm) 100
Max Vertical Hanging (mm) 40
Optional Bending Radius 60/75/100/125/150/200/250

6

Separators can be selected26.01VS can be installed both in non-closed & closed chains

The detailed value of R must be chosen from the dimensions

Type

Inner width Bi(mm) outer width Ba(mm) Type of according fixed connector  A(mm)  Bmm)  C(mm)  D(mm)
26.40.R 40 58 26.40.12PZ

52

14

15

4.5

26.50.R 50 68 26.50.12PZ

62

14

15

4.5

26.75.R 75 93 26.75.12PZ

87

14

15

4.5

26.100.R 100 118 26.100.12PZ

112

14

15

4.5

26.125.R 125 143 26.125.12PZ

137

14

15

4.5

26.150.R 150 168 26.150.12PZ

162

14

15

4.5

26C.40.R 40 58 26C.40.12PZ

52

14

15

4.5

26C.50.R 50 68 26C.50.12PZ

62

14

15

4.5

26C.75.R 75 93 26C.75.12PZ

87

14

15

4.5

26C.100.R 100 118 26C.100.12PZ

112

14

15

4.5

26C.125.R 125 143 26C.125.12PZ

137

14

15

4.5

26C.150.R 150 168 26C.150.12PZ

162

14

15

4.5

Note: Type No. “xxC” for closed type, whole “xx” for non-closed type

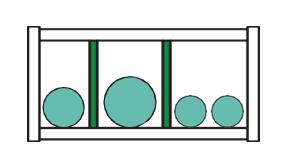

Accessories—Interior Separation for Non-closed Chains

TI20200713105729

Advantages of Cable Chains:

Guiding the cables for moving

Protecting the cables when moving up and down

Applied in the condition of light load, medium or short distance, slow speed, etc.

Application of guide chains

Applied to use in reciprocating motion so as to have traction and protection effects on built-in cables, inner oil tubes, gas tubes. water tubes, etc;

Each segmental part of the engineering plastic cable chain can be opened for easy installation and maintaining; While working, the engineering plastic chain is in low noise, anti-abrasion, high speed movement;

Widely applied to numerically controlled machine tools, electronic devices, dimension stone mechanism, glass mechanism, door-window mechanism, plastic jetting-moulding machine, manipulator, weight handling equipment, auto warehouse, etc.

10
11
